Using vMA as a local vSphere Patch Repository

I like using http as the transport protocol when patching my vSphere hosts. It’s easy to use and in most cases immediately available over most networks. Since I want to use http as the transport, we need to make vMA work as a http server.

Starting Apache inside vMA

Luckily, the Apache http daemon is installed, by default, in vMA and to utilize it all you have to do is to start it!

Log on to vMA with your favorite SSH client and run the following command to start the Apache HTTP Daemon:

[[email protected] /]$ sudo service httpd start
Starting httpd: httpd: Could not reliably determine the server's fully qualified domain name, using 127.0.0.1 for  ServerName                   [ OK ]
[[email protected] /]$

Never mind the error message it displays, for our purposes that’s not an issue and we can safely ignore it.

By default the files served by Apache is located in /var/www/html, so we’ll head over there to create a new directory

[[email protected] /]$ cd /var/www/html/
[[email protected] html]$ sudo mkdir repo

We’ve now created the repo directory inside the Apache docroot. Now we need to add some patches to that directory, to make it available for the vihostupdate or esxupdate command we can use to patch our hosts.

In my lab, I used the update-from-esxi4.1-4.1_update01 patch bundle from vmware.com

To download the patch into the new repo directory created above, run the following commands:

[[email protected] html]$ cd /var/www/html/repo/
[[email protected] repo]$ sudo wget https://hostupdate.vmware.com/software/VUM/OFFLINE/release-260-20110127-912579/update-from-esxi4.1-4.1_update01.zip
Password:
--15:34:32--  https://hostupdate.vmware.com/software/VUM/OFFLINE/release-260-20110127-912579/update-from-esxi4.1-4.1_update01.zip
	Resolving hostupdate.vmware.com... 88.221.164.7
	Connecting to hostupdate.vmware.com|88.221.164.7|:443... connected.
	HTTP request sent, awaiting response... 200 OK
	Length: 215820281 (206M) [application/zip]
	Saving to: `update-from-esxi4.1-4.1_update01.zip'
100%[===============================================================================================================>]

215,820,281  919K/s   in 3m 54s
15:38:26 (901 KB/s) - `update-from-esxi4.1-4.1_update01.zip' saved [215820281/215820281]

This downloads the patch bundle, using the wget command, to the current directory.

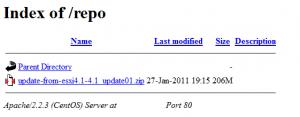

Now, to make sure your downloaded patch bundle is available via the web server, open http://vMA-IP/repo/ and you should see the directory contents listed. Your browser should display something similar to this:

Before patching a host, power off or migrate any virtual machines that are running on the host and place the host into maintenance mode.

Scan host for update compatibility

[[email protected] repo]$ vihostupdate --server 10.0.100.20 --scan --bundle http://10.0.101.14/repo/update-from-esxi4.1-4.1_update01.zip
Enter username: root
Enter password:
The bulletins which apply to but are not yet installed on this ESX host are listed.

---------Bulletin ID---------   ----------------Summary-----------------
ESXi410-201101201-SG            Updates the ESXi 4.1 firmware
ESXi410-201101202-UG            Updates the ESXi  4.1 VMware Tools
ESXi410-201101223-UG            3w-9xxx: scsi driver for VMware ESXi
ESXi410-201101224-UG            vxge: net driver for VMware ESXi
ESXi410-Update01                VMware ESXi 4.1 Complete Update 1

Install updates to host

[[email protected] repo]$ vihostupdate --server 10.0.100.20 --install --bundle http://10.0.101.14/repo/update-from-esxi4.1-4.1_update01.zip
Enter username: root
Enter password:
Please wait patch installation is in progress ...
The update completed successfully, but the system needs to be rebooted for the changes to be effective.
[[email protected] repo]$

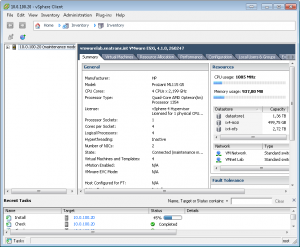

While the update runs, you can also follow it’s progress in the vSphere Client


When the patch has completed, and the host has been rebooted you can run the scan command again to make sure all of the patches are installed and no longer required.

Management

Now, downloading the patches this way for each vMA instance you have (especially if you have several remote sites) is not very effective. Sure, you could place a central repository at a central site and use that as your central update repository. In that scenario you might as well just use the VMware vCenter Update Manager and not have to manage your updates via vMA at all.

In some cases though, you would want to have the remote hosts install their updates from a local repository. One such case might be if you have remote locations with low bandwidth/high latency links that you don’t want to stress with the update downloads.

I’m investigating a possible solution for that as well, and I’ll post that as soon as I have working proof of concept up and running.

Another thing to note, is that when you restart vMA the http service will be stopped again. If you want it to autostart each time vMA boots, issue the following command

[[email protected] repo]$ sudo ntsysv
Password:

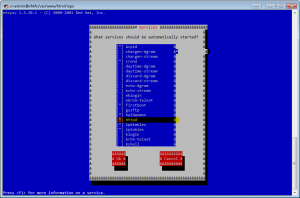

This brings up a screen where you can choose which daemons should start at boot time inside of vMA.

Find httpd, select it and hit the OK button. The next time vMA boots, the Apache web server starts with it.

7 thoughts on “Using vMA as a local vSphere Patch Repository

  1. You can also enable any service by default by using “chkconfig” utility.

    To enable httpd server to start on runlevel 3, you can use the following command:

    sudo chkconfig –level 3 httpd on

  2. Just enabled my vMA in an isolated lab environment using UMDS and this info. Saved me digging round myself – thanks. Liking the rsync stuff with vMA too. As I work more with ESXi I’m finding many uses for the vMA.
